PTFE Needlefelt 750 g/m2 (22 oz/yd2)
Description
A 218 °C (425 °F) maximum service temperature, PTFE felt filter with high temperature potting (gray) for use in pulse jet style dust collectors where high differential pressure, high cleaning pressures and chemical resistance are required due to aggressive chemistries, operating conditions and dust loading.
Features & Benefits
• Membrane
technology provides an excellent combination of filtration efficiency and dust
cake release.
• Polytetrafluoroethylene scrim offers superior chemical resistance, excellent
dimensional stability, and resistance
to mechanical damage over the life of the filter.
• Chemically inert providing the highest all-around chemical resistance and maximum life.
Applications
Working with High-corrosive & temperature gas,
Chemical,
Waster incineration,
Coal-fired boiler,
Non-ferrous metal
PRODUCT
DATA SHEET
STYLE PTFE750
PTFE
NEEDLEFETL
|
AREA
WEIGHT |
EN12127 |
750 ±35g/m2 |
22±1.03oz/yd2 |
DENSITY |
0.71 g/cm3 |
||||
|
THICKNESS |
EN ISO
9073/2 |
1.05 ±0.1mm |
0.042±0.004in |
|
|||||
|
COMPOSITION |
FIBER |
PTFE |
|||||||
|
SCRIM |
PTFE |
||||||||
|
FINISH |
HEAT-SET,
HYDRO-OIL REPELLENT, SURFACE TREATMENT WITH PTFE BATH |
||||||||
|
|
|
||||||||
|
|
LONGITUDINAL |
CROSS |
|||||||
|
TENSILE
STRENGTH (5×20cm) |
GB/T
3923.1-2013 |
≥800N |
≥ 800 N |
||||||
|
ELONGATION |
GB/T
3923.1-2013 |
≤ 35 % |
≤30 % |
||||||
|
THERMAL
STABILITY (SHRINKAGE) at 260℃ 24h |
GB/T
6719-2009 |
≤1.5% |
≤ 1 % |
||||||
|
AIR
PERMEABILITY at
200Pa |
GB/T
5453 |
70-160 l/dm2 min |
|
||||||
|
|
|||||||||
|
FIBER
PROPERTIES |
|
||||||||
|
OPERATING
TEMPERATURE (Dry) |
CONTINUOUS
|
250℃Max 482℉ Max |
|||||||
|
PEAKS |
260℃Max 500℉ Max |
||||||||
|
|
|||||||||
|
CHEMICAL
RESISTANCE |
|||||||||
|
STRONG
ACIDS **** |
STRONG
ALKALIS **** |
SOLVENTS **** |
|||||||
|
WEAK
ACIDS ***** |
WEAK
ALKALIS **** |
OXIDIZING **** HYDROLYSIS
**** |
|||||||
|
LENGEND: **** EXCELLENT *** GOOD ** FAIR * POOR |
|||||||||
* All data expressed as typical values. This technical data is subject to
change.

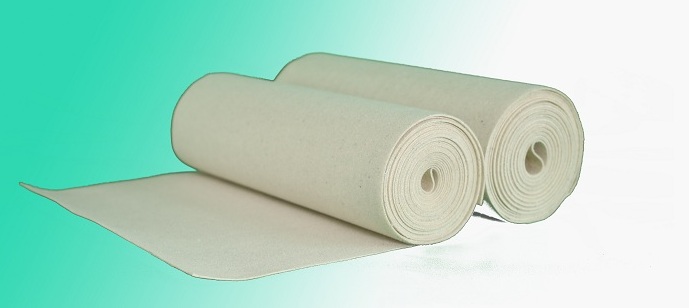

Filter media as roll goods
made of needle felt and glass fibre fabric
Filter media - provide the individual & tailored solution
Varieties Material Choose
Multi-layer Fiber Construction & Support Scrim
Excellent Durability and Longer Life
Mechanically High-strength
Finished Treatment Performance
Higher Efficiency
Easy Cleaning
Less Dust Emission
Better Pressure Performance
Resistance to Corrosive Flue Gas & Dust
Glass fibre fabric with ePTFE membrane
Working width up to 2.60 m
Basis weight from 250 to 950 g/m²
Innovative performance material can be used in numerous areas and fulfill various requirements
Reliable and durable materiel from roll
